PASEIKI's linear scales and DRO: the quintessence of fine workmanship

PASEIKI Technology Co.,Ltd has been devoting himself to the development and realizatoin of high-end exquisite technology, against plentiful talent resources and strong research & development capability, we established industrial clusters which takes new & high-precise electrooptical technology
as the core technology,and formed a complete system of development, production, sales and technology service. We look " persuit excellent, challenge future" as our mission for many years, we collect a lot of advanced technology and experience of progromming improvement, and also have special technology



High-end technology requests high-quality service level because customer always asks safe, reliable and high-efficient system,
so technical support and service is very important for service departments which is reasonably arranged in the world market.

PASEIKI has service office in the whole country, and also has agent service office in the regions and countries:Turkey, Korea, Iran, Taiwan,
Australia, Brazil etc, so we have a high-efficient customer service system.

Sales engineer and experienced service engineer both can provide service and technical consultation for actual question solutions locally, incuding OEM/ODM etc.

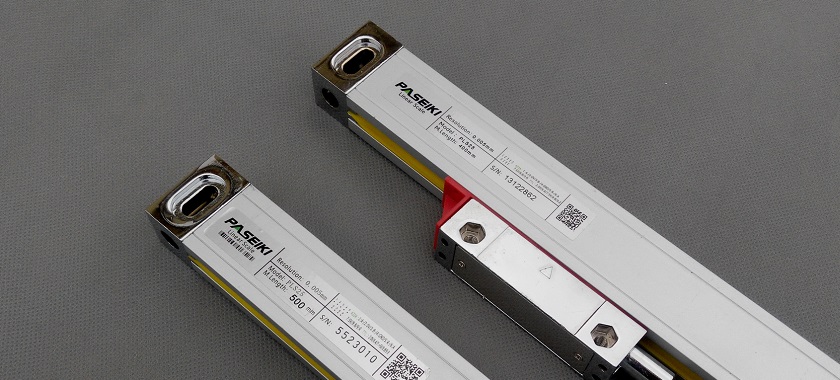

Closed-type linear scale is dust-proof,cuttings-proof,anti-splash of cutting fluid effectively,it is ideal choice for machine tool.
Aluminum housing and soft closed strip can protect the linear scale, scanning unit and guide from the effect of dust, cuttings and cutting fluid, the movement guide of scanning unit has a very small
friction force, guide is built-in on the linear scale,it uses a coupling to connect with outside support, this coupling can compensate the unavoidable errors between linear scale and machine guide.
The structure of closed-type linear scale has standard-type housing (PLS2) which is used in common working environment,
for high vibration frequency environment and maximun length of 3 meters, we suggest using PLS3 series linear scale.
There still has slim linear scale (PLS1) to suitable some special machine tool which has a small installment space.

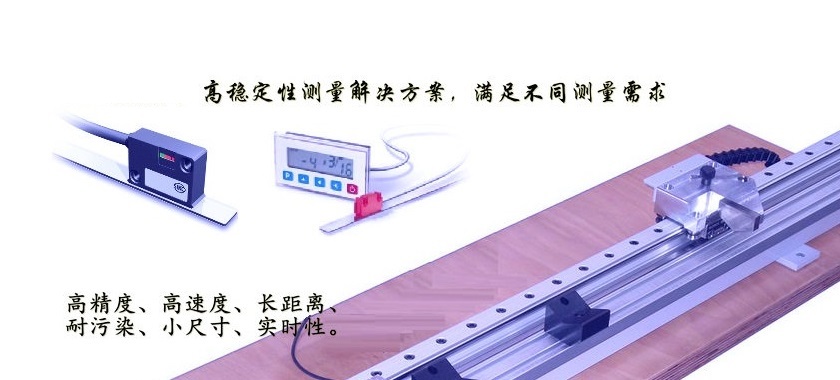

Magnetic Scales

Magnetic Scales are designed for high-precise measuring machine tools and systems which need working in severe environment but the accuracy can't be affected.

The PMS encoders bring reliable solutions to tough, hard-working applications including woodworking, stone-cutting, sawing, metalworking, textiles, packaging, plastics processing, automation and assembly systems, laser/flame/water-jet cutting, electronic assembly equipment etc.
Features:

1. Resolution:0.025mm、0.01mm、5um、1um、0.5um
2. Output: LINE-DRIVER、PUSH-PULL
3. Cable Length: 1 meter, 2 meters, 10 meters
4. Accuracy: ±10μm/m、±15μm/m、±30μm/m 、±40μm/m
5. Magnetic Scale Length: Max 60M
6. Magnetic Pitch: 1+1mm、2+2mm、5+5mm

Magnetic Scale Product Merits:

1.Non-contact measurement, without backlash problem
2.Strong anti-polution ability
3.Installment is simple and and permits a bigger installment error

Applications:

metal processing facilities, stone material machinery, wood working machine and other machineries.

magnetic sensor
1. Repeatability ± 1 increment
2. Power supply 5 - 28 Vdc ± 5%
3. Protection class IP 67
magnetic strip
1. MagneticPitch: 1+1/2+2/5+5mm
2. Length Max.32M
3. Width: 10mm, thickness 1.3mm

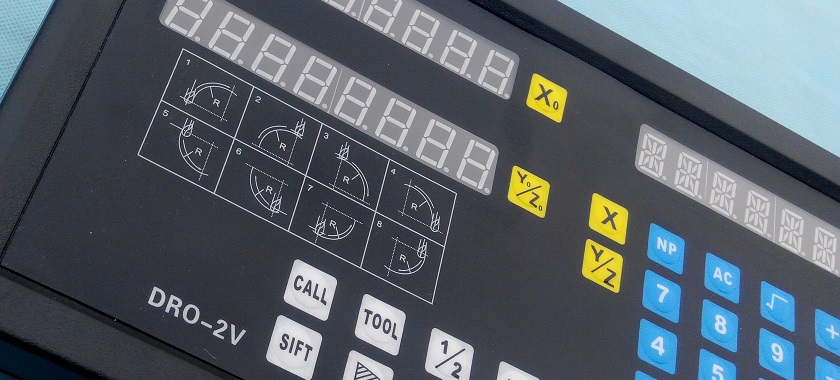

Digital readouts

Digital display equipment is used to visually display the measuring value of linear scale,
length measuring instrument, rotary encoder or angle encoder. It is used to the facilities below:

Measuring and testing facilities
Dividing apparatus
Monitoring measurement facilities

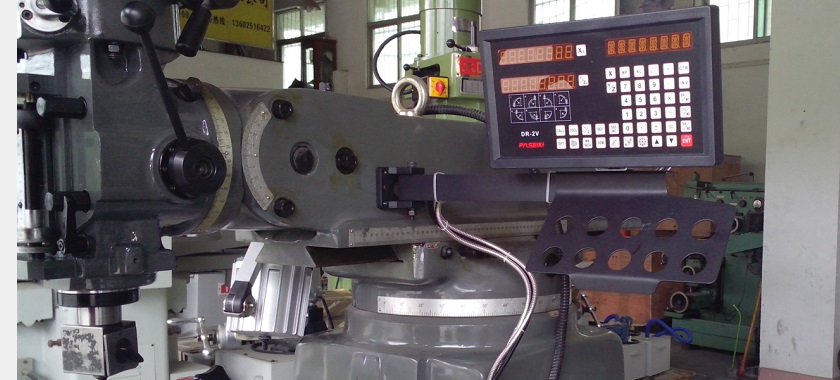

Manual-operation machine tool
Measuring Machine
Paseiki's digital display equipment is designed friendly, the typical applications are:

Letter and number is legible
Key is simple and reasonable
Key operation is comfortable
Front panel protection
Compact metal casting housing
Most of DRO have digital port, it is available for more advanced circuit process and print out testing value.

Interface electrical circuit

Interface electrical circuit of Paseiki provides encoder signal to subsequent electrical circuit port, we reserve subsequent development port.

  • Metal case and plastic shell DRO
  • LED display and LCD display
  • Optional 1/2/3/4/5 axis data display

Parameters:

1、Voltage Range: AC 80V~260V/50HZ~60HZ
2.Power Consumption: 25VA
3.Coordinates: 1/2/3/4/5
4、Display: 7 digits display with symbol
5、Frequency number:4X
6.Input Signal: TTL square wave EIA442A
7.Input Signal frequency: 100KHZ
8.Length resolution: 10μm、5μm、2μm、1μm、0.5μm
9.Operation Keyboard: Touch keyboard
10.The grid distance of linear scales is 0.02mm、0.01mm
    Download the use of manuals, software and DRO and other PASEIKI measuring devices. Prior to the start, read the instructions, note, and download and install instructions. Non listed products are available for download.
